4WIN 2.0 CNC woodworking centre

The working cell for windows manufacturing

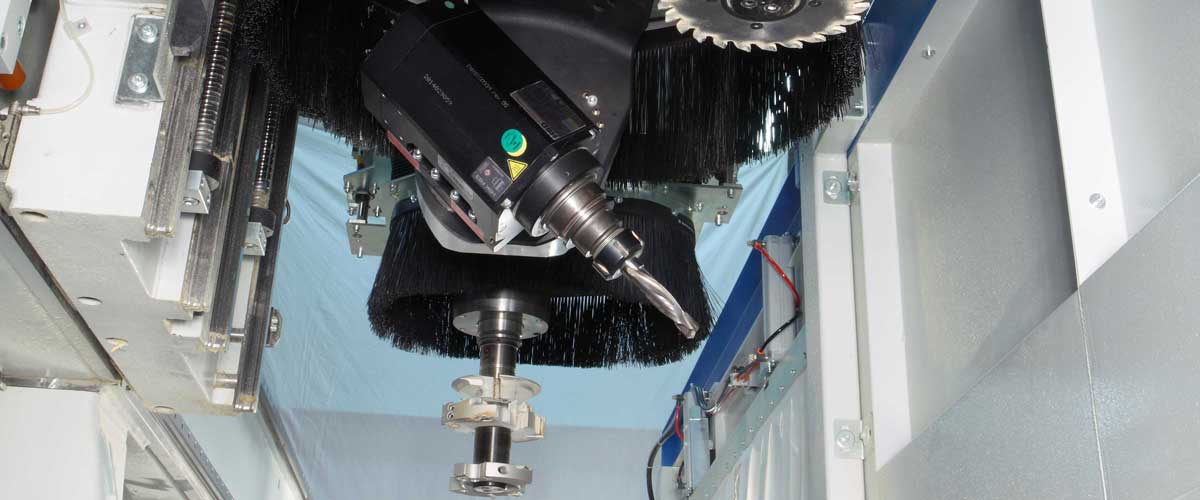

Two operating units
  • High power vertical router for demanding processing (event with "double" or "splitted" tools)
  • Birotative unit for alla additional processing (with dedicated tool magazine)
Two operating units
Tools magazines
Wide range of tools magazines to process any kind of window frames
Tools magazines
Large Buffer
Automatic loading and unloading system with large workpiece buffer for long run without any supervision
Large Buffer
Working Area
The new working plane (patented) allows a perfect clamping of the workpieces.
Working Area
Working Area
Tenoning: the workpiece is firmly locked by TWO PRESSERS at the same time.
Working Area
Working Area
The workpiece is firmly locked even with a small supporting surface.
Working Area
Working Area
Locking with suction cups of any size and shape to optimize the workpiece support according to the processes to be performed.
Working Area
Working table
Thanks to the "tubeless" system, the positioning and locking of arched pieces is easy and fast.

The work table is arranged to accommodate the locking devices for both linear and arched elements.

Working table
"Tubeless" working area (opt.)
Machining of panels, doors etc, thanks to the "tubeless" worktable (opt.)
Description4 WIN 2.0Unit of measurement
Max machinable workpiece X-Y-Z (automatic table) 4500-150-150 mm
Working Area X-Y-Z ("tubeless" - opt.) 3200-1300-200 mm
Elettromandrini - potenza massima 19 (S6) - HSK 63 F - Vertical Router
7.5 (S6) - HSK 63 F - birotative unit
kW
Max tools number on magazines 42
Automatic working table std
Additional "Tubeless" worktable opt

Technical specifications

4 WIN 2.0 is the 3 axes automated working cell for the production of windows and frames according to the prefinished technique.

On a small layout 4 WIN 2.0 focuses a powerful machining centre for the production of standard and special linear windows and frames with an automatic system for loading and unloading of the raw and finished parts with relative tools magazines.

CNC especially designed for the processing and the production of:

  • windows
  • frames
  • doors
