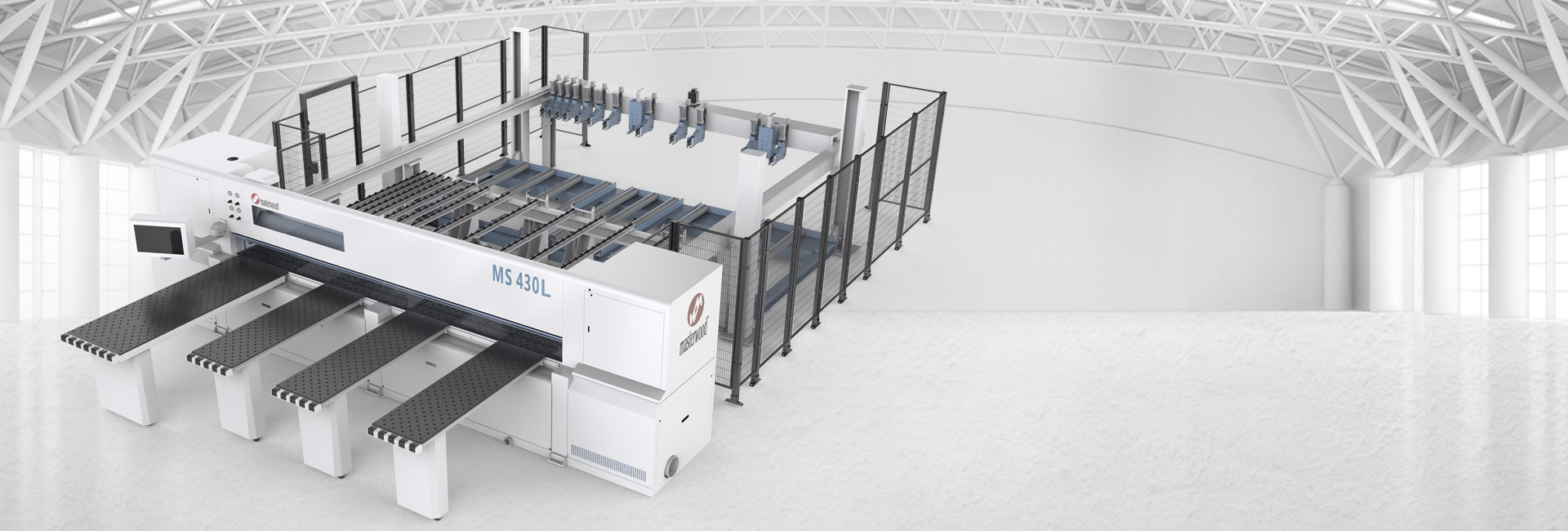

MS 430 L

MS 430 L Panel sizing solutions

Automatic loading panel cutting centre for high productivity

  • |
Grippers
Stability and locking force thanks to compact and robust grippers
Grippers
Panel packs management
Automatic packs feeder with electromagnetic measuring system of the thickness
Panel packs management
High productivity
Rear and lateral automatic loading systems for pack of panels
High productivity
Cutting precision
The cut is precise with the scoring and the main blade controlled independently. Automatic adjustment of the main saw projection to the stack height
Cutting precision
Processing speed
Smart pressure beam with double pneumatic system always ensures perfect sealing of the pack and reduces processing times
Processing speed
High machining accuracy
Side-alignment system with double rollers
High machining accuracy
Ease of processing
Air floating system for minimizing the friction between the workpiece and working table
Ease of processing
Smart factory
Simple and intuitive software for the management of the machine as well as management of the warehouse of raw panels, the optimization of the cuts based on the imported list, the management of leftovers and the possibility of creating and designing labels for bar-code or QR code
Smart factory
DescriptionUnit of measurementMS 430L
Maximum panel dimension manual loading mm 4200 x 4300
Maximum panel dimension automatic loading mm 4200 x 2300
Main saw diameter mm Ø450 x  Ø75
Blade projection mm 124
Scoring saw diameter mm Ø200 x  Ø50
Cutting speed m/min 95
Saw blade return speed m/min 110
Main saw motor power kW 18.5
Number of grippers (opt.) 10 (12)

Technical Specifications

Master Saw is the complete range of products dedicated to high-speed panel cutting, perfect for all the needs of the segment.

MS 430L is the best possible solution to increase productivity without limits.
