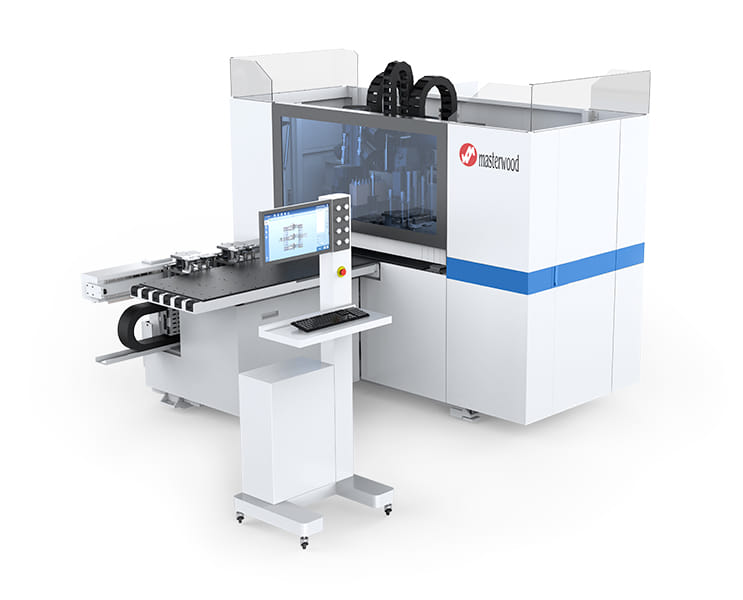

TF 500

Holes drilled on 5 sides, in just 9.2 m²

The TF500 is based on the TF600KT platform, which has been simplified to offer a compact solution for those with limited production space, whilst maintaining Masterwood’s drilling quality.

  • Compact design, with a floor space of just 9.26 m², approximately 21 per cent less than the TF600KT.
  • Drilling on five sides of the panel: the top face and all four sides
  • 3.5 kW top-mounted electric spindle for milling operations
  • Dual clamping unit with a 2.8 m guide rail for panel handling

A solution for those looking for a compact and simple machine, also ideal as a first drill press.

request product info
technical data
TF 500
Holes drilled on 5 sides, in just 9.2 m²
strengths
of the machine
1.
Maximum compactness
It also fits into compact workspaces
2.
5-sided drilling
Double set of pliers with a 2.8 mm guide
3.
The ideal first machine
The perfect solution for production in confined spaces
technical
data
Spindles upper drilling head
10 V + 8 H
Upper electrospindle (max power)
3,5 kW (ATC)
Workable piece Length
70-3000 mm
Workable piece width
35-1000 mm
Panel thickness (min-max)
9-60 mm
Machine dimension
4115x2250x2210 mm
