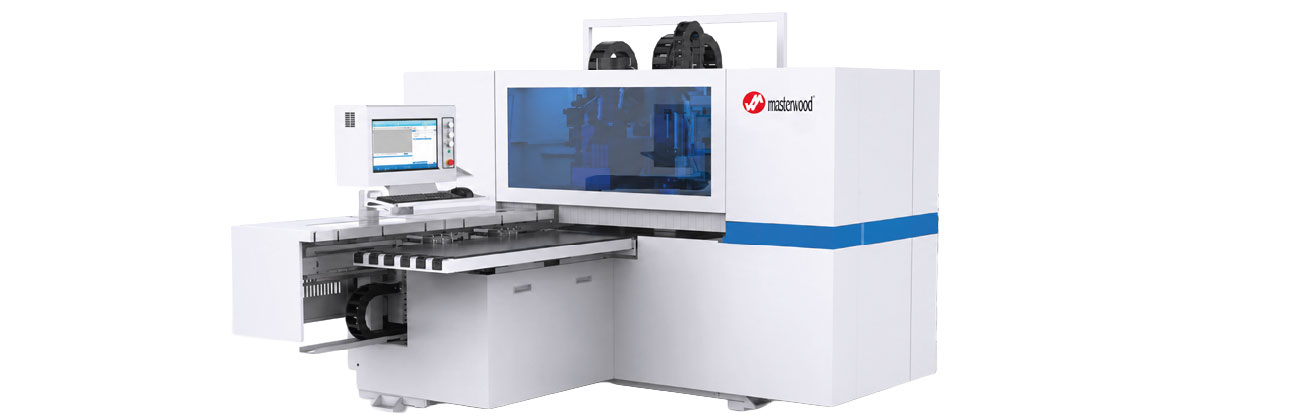

TF 600 KD

Drilling and automatic pin insertion in a single machine

The TF600KD is based on the TF600KT platform and features automatic plug insertion, designed to reduce manual operations and production times.

  • Holes drilled on all 6 sides of the panel, both vertically and horizontally
  • Dual electric spindles, top and bottom, for machining both sides of the panel
  • Automatic tool change on the upper electric spindle
  • Automatic dowelling into freshly drilled holes, without the need for manual insertion by the operator

A solution for preparing panel-to-panel joints in a single step, offering greater repeatability and quality.

request product info
technical data
TF600 KD
Drilling and automatic pin insertion in a single machine
TF600KD
strengths
of the machine
1.
6-sided drilling
Holes drilled on all 6 sides of the panel, both vertically and horizontally
2.
Automatic dowelling
into the holes that have just been drilled, without the operator having to insert them manually
3.
Dual electric spindle
Top and bottom, to work on both sides of the panel
4.
Automatic tool change
on the upper electric spindle
technical
data
Spindles upper drilling head
13 V + 10 H + 1 BLADE
Spindles lower drilling head
9 V
Upper electrospindle (max power)
5,5 kW (ATC)
Lower electrospindle (max power)
3,5 kW
Workable piece Length
70-3000 mm
Workable piece width
35-1000 mm
Panel thickness (min-max)
9-60 mm
Machine dimension
5270x2954x2336 mm
