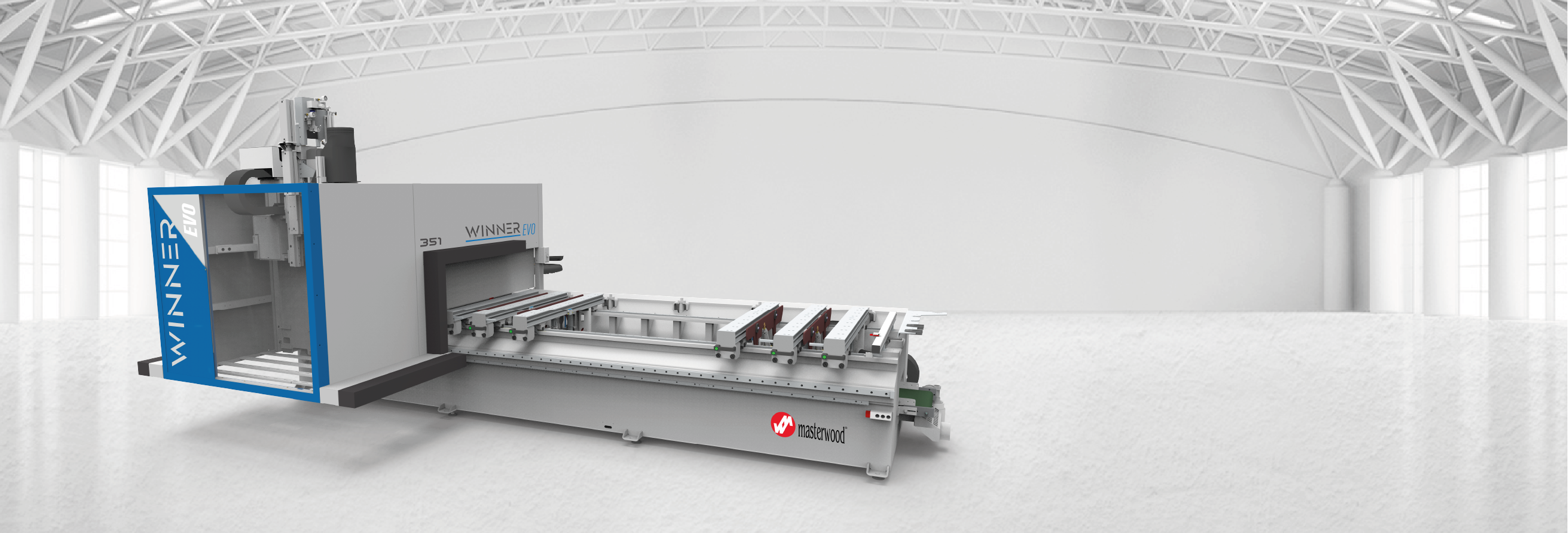

WINNER EVO 351 CNC woodworking centre
Performance, flexibility, modularity
New operating unit
Bridge structure carriage
The new "bridge" structure, designed with "finite elements" technique: the best solution for demanding environments.
Horizontal tilting routing unit with double exit
For lock case machining and hinges plates routing. Pneumatic tilting with manual reference setting
Linear guides
The work tables run on linear guides with preloaded ball bearings. Smooth movement, accuracy and rigidity of the worktable.
Safety
Working areas are always controlled by the operator thanks to the transparent total enclosure protection of the operating unit.
Working table
Thanks to the side sliding stops you can position multiple pieces with high precision and without
waste of time.
Carousel type tool magazine for automatic tool change
- Mounted on carriage side
- Hsk F63 cone attachment
Configuration options
Digital display to view data sent by the numerical control
Worktable configuration basing on the program to perform.
Working Area
Locking with suction cups of any size and shape to optimize the workpiece support according to the processes to be performed.
Reference stops
Reference stops for veneered panels with and without overhang.
Tool magazine
5-position linear tools magazine with saw blade housing up to 350mm
Aggregates
A large set of fixed or tilting angular heads complete the configurability and make this a perfect working center for the manufacture of panels, doors, windows, stairs, and for each special application.
Operating Units
It's possibile to use large diameter tools
| Description | Winner EVO 351 | Winner EVO 351L | UM |
|---|---|---|---|
| Working Area X-Y-Z | 3240-1550-200 | 5160-1550-200 | mm |
| Boring head - total spindles | 19 | 19 | |
| Electrospindle power | 12 | 12 | kW |
| Vectorial speed x-y axis | 68 | 68 | m/min |
| Tools magazine - max n. of tools |
22+5+16 | 22+5+16 | |
| Max tool diameter | 250 (280 sawblade-opt) |
250 (280 sawblade-opt) |
mm |
| Max. vacuum pump | 100 (std) + 100 (opt) | 100 (std) + 100 (opt) | m3/h |
Specifiche tecniche
The Winner EVO 351 has finally arrived with machinable workpiece width up to 1550 mm.
Sturdy bridge structure, large tool magazines, “pods & rails worktable” and much more: Winner EVO 351 is the CNC for those who want a high quality without the excessive investment.
Just suited for stairs, doors and windows processing.
Winner EVO 351' structure reaches very high levels of stiffness.
The result is a great flexibility in both machining of panels and solid wood.
